Basic Workflow: Model Specification, Bundle, & MCMC

Website workflow note. This page reflects the current exported API and recommended wrapper-first usage. Last updated: 2026-02-19.

For the full package narrative, see the main package vignettes (basic, unconditional, conditional, and causal).

Workflow roadmap

Workflow Overview

CausalMixGPD supports a wrapper-first workflow for most users:

Fit directly with dpmix() or dpmgpd().
Inspect/predict with summary(), plot(), and predict().

The lower-level bundle route (bundle() then mcmc()) remains available for advanced control.

Phase 1: Bundle (NIMBLE Code Generation & Compilation)

Purpose: Generate NIMBLE model code, compile sampler, prepare for MCMC execution.

For the underlying model math (GPD threshold exceedances, DPM bulk regression, and the spliced quantile construction), see Theory: GPD tails + DPM bulk + splicing.

Building Directly

Code

# Load packaged data
data("nc_pos200_k3")
y <- nc_pos200_k3$y

# Direct call
bundle_direct <- bundle(
  y = y,
  kernel = "gamma",
  backend = "crp",
  GPD = FALSE,
  components = 5,
  mcmc = mcmc
)

Inspecting Bundle Contents

Code

# Bundle is an S3 object with structure
bundle_class <- class(bundle_direct)
bundle_names <- names(bundle_direct)
bundle_mcmc <- bundle_direct$mcmc_settings

bundle_class

[1] "causalmixgpd_bundle"

Code

bundle_names

 [1] "spec"           "code"           "constants"      "dimensions"
 [5] "data"           "inits"          "monitors"       "monitor_policy"
 [9] "mcmc"           "epsilon"

Code

bundle_mcmc

NULL

Phase 2: MCMC Execution

Purpose: Run posterior sampling from the compiled bundle.

Basic MCMC Run

Code

# Run MCMC
fit <- load_or_fit("quickstart-basic-model-compile-run-fit", dpmix(bundle_direct, mcmc = list(show_progress = FALSE)))
invisible(fit)

Accessing Posterior Samples

Code

summary(fit)

MixGPD summary | backend: Chinese Restaurant Process | kernel: Gamma Distribution | GPD tail: FALSE | epsilon: 0.025
n = 200 | components = 5
Summary
Initial components: 5 | Components after truncation: 2

WAIC: 946.601
lppd: -425.102 | pWAIC: 48.198

Summary table
  parameter  mean    sd q0.025 q0.500 q0.975    ess
 weights[1] 0.686  0.11  0.464  0.698  0.891  12.71
 weights[2] 0.281 0.096  0.093  0.275  0.461 18.124
      alpha 0.518  0.34  0.069   0.44  1.364 58.839
   shape[1] 1.574  0.25  1.281  1.525   2.23  7.387
   shape[2] 1.549 0.252  1.009  1.547  2.033 18.653
   scale[1] 0.295 0.061  0.232  0.285  0.427 29.112
   scale[2] 1.232  0.47  0.437  1.166  2.333 29.485

Code

# Posterior mean parameters in original form
params_fit <- params(fit)
params_fit

Posterior mean parameters

$alpha
[1] 0.5175

$w
[1] 0.6862 0.2813

$shape
[1] 1.574 1.549

$scale
[1] 0.2955 1.2320

Diagnostic Plots

Code

# Trace plots
plot(fit, params = "alpha|beta", family = c("traceplot", "running", "autocorrelation"))

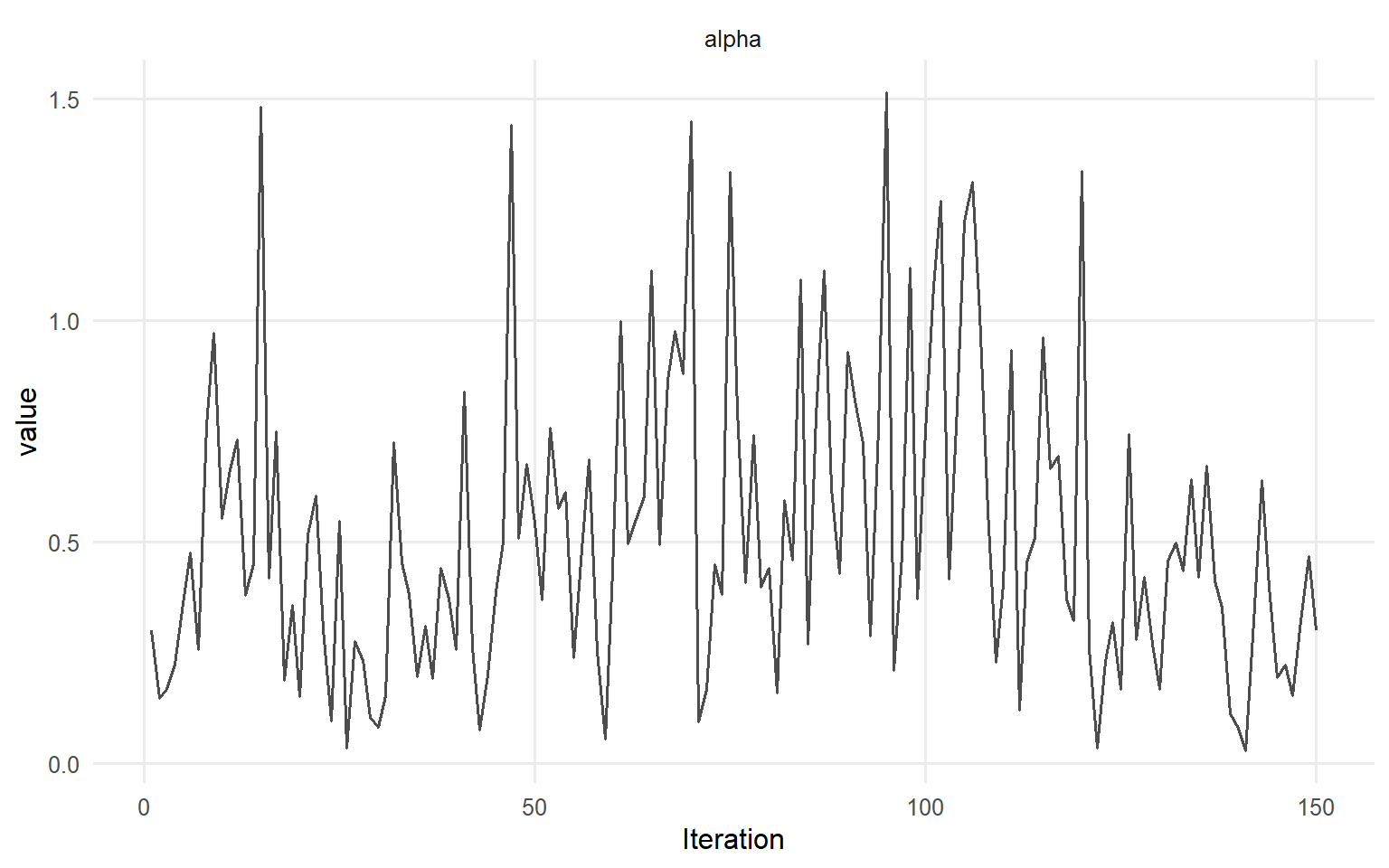

=== traceplot ===

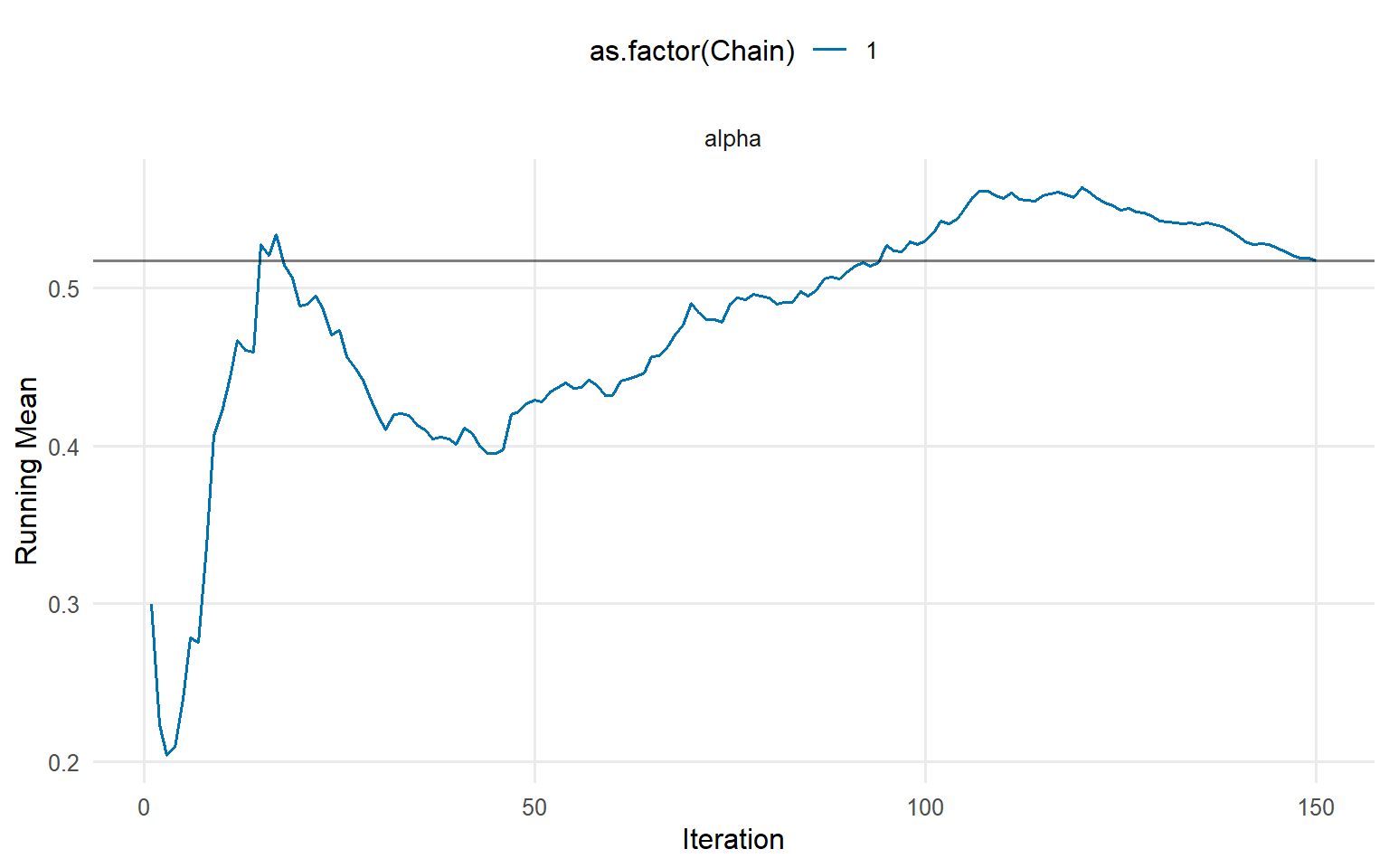

=== running ===

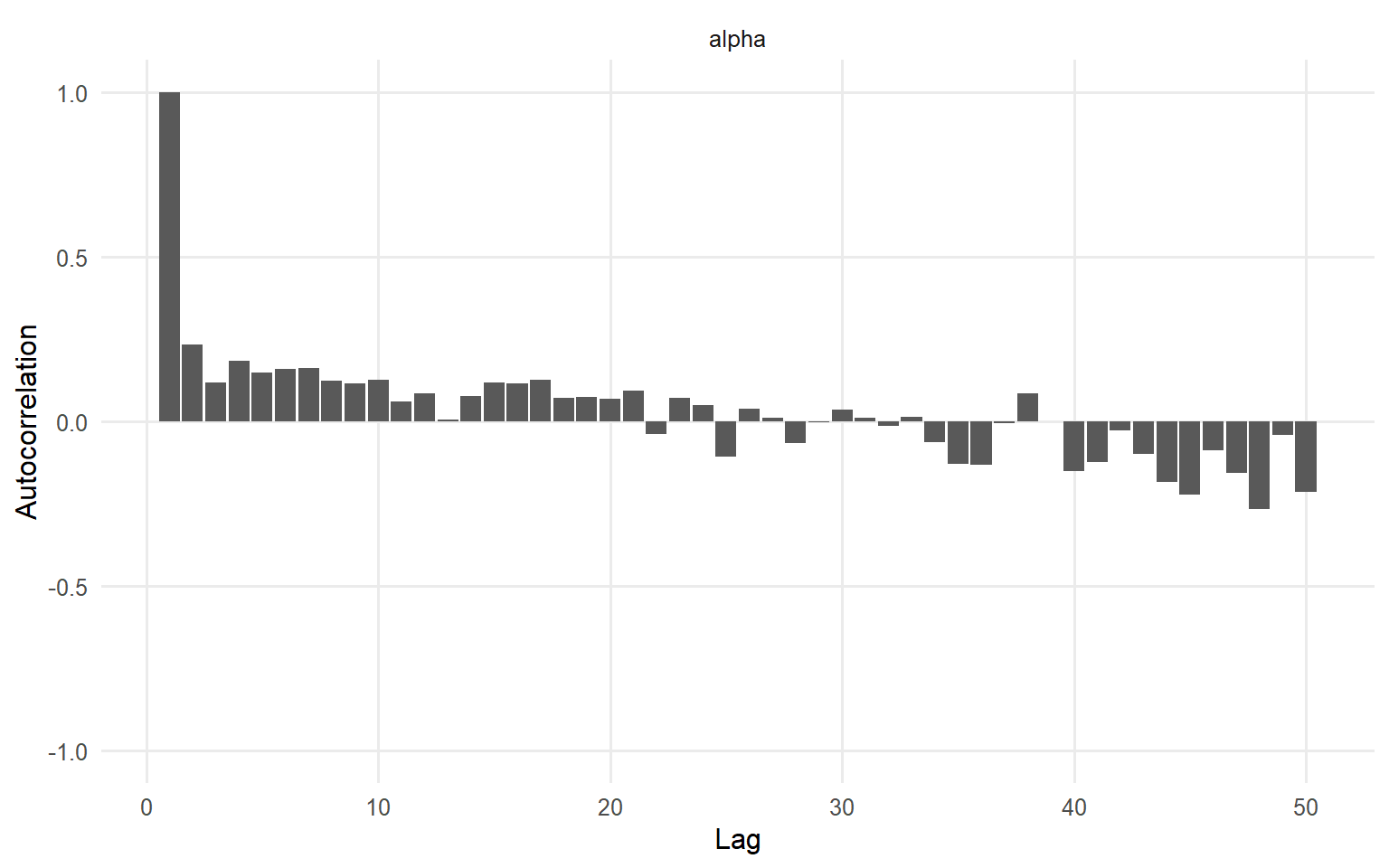

=== autocorrelation ===

Complete Workflow: End-to-End Example

Code

# Load packaged data
data("nc_pos200_k3")
y_data <- nc_pos200_k3$y

# PHASE 1: Bundle
bundle_final <- bundle(
  y = y_data,
  kernel = "gamma",
  backend = "crp",
  GPD = FALSE,
  components = 5,
  mcmc = mcmc
)

# PHASE 2: MCMC
fit_final <- load_or_fit("quickstart-basic-model-compile-run-fit_final", dpmix(bundle_final, mcmc = list(show_progress = FALSE)))
summary(fit_final)

MixGPD summary | backend: Chinese Restaurant Process | kernel: Gamma Distribution | GPD tail: FALSE | epsilon: 0.025
n = 200 | components = 5
Summary
Initial components: 5 | Components after truncation: 2

WAIC: 920.54
lppd: -398.762 | pWAIC: 61.508

Summary table
  parameter  mean    sd q0.025 q0.500 q0.975    ess
 weights[1] 0.595 0.098  0.464   0.58  0.831 15.934
 weights[2] 0.359 0.101  0.126  0.372  0.496 13.749
      alpha 0.557 0.335  0.088  0.508  1.431   47.5
   shape[1] 1.892 0.478  1.363  1.822  3.247 22.224
   shape[2] 2.241 0.792  1.291  1.914  3.779  7.634
   scale[1] 0.579 0.306   0.27  0.383  1.258  6.476
   scale[2] 0.938 0.625  0.278  0.934  1.974 12.255

Backend Comparison: CRP vs Stick-Breaking

CRP Backend

Code

# Chinese Restaurant Process
bundle_crp <- bundle(
  y = y_data,
  kernel = "gamma",
  backend = "crp",
  components = 5,
  mcmc = mcmc
)

fit_crp <- load_or_fit("quickstart-basic-model-compile-run-fit_crp", dpmix(bundle_crp, mcmc = list(show_progress = FALSE)))
invisible(fit_crp)

Stick-Breaking Backend

Code

# Stick-Breaking Process
bundle_sb <- bundle(
  y = y_data,
  kernel = "gamma",
  backend = "sb",
  components = 5,
  mcmc = mcmc
)

fit_sb <- load_or_fit("quickstart-basic-model-compile-run-fit_sb", dpmix(bundle_sb, mcmc = list(show_progress = FALSE)))
invisible(fit_sb)

Kernel Selection Guide

Code

kernels_available <- c("gamma", "lognormal", "normal", "laplace", "invgauss", "amoroso", "cauchy")

kernels_available

[1] "gamma"     "lognormal" "normal"    "laplace"   "invgauss"  "amoroso"
[7] "cauchy"

GPD Tail Augmentation

Unconditional with GPD

Code

# Data with tail behavior
data("nc_pos_tail200_k4")
y_tail <- nc_pos_tail200_k4$y

# Build with GPD
bundle_gpd <- bundle(
  y = y_tail,
  kernel = "gamma",
  backend = "sb",
  GPD = TRUE,
  components = 6,
  mcmc = mcmc
)

fit_gpd <- load_or_fit("quickstart-basic-model-compile-run-fit_gpd", dpmgpd(bundle_gpd, mcmc = list(show_progress = FALSE)))
summary(fit_gpd)

MixGPD summary | backend: Stick-Breaking Process | kernel: Gamma Distribution | GPD tail: TRUE | epsilon: 0.025
n = 200 | components = 6
Summary
Initial components: 6 | Components after truncation: 2

Summary table
  parameter  mean    sd q0.025 q0.500 q0.975    ess
 weights[1]  0.59 0.075  0.463  0.572  0.734  4.464
 weights[2] 0.314  0.07  0.205   0.28  0.444  5.817
      alpha 0.952 0.821  0.175  0.615  2.981  3.838
 tail_scale 1.763 0.355  1.136  1.747  2.458 77.733
 tail_shape 0.215 0.117 -0.006  0.202  0.457 59.637
  threshold 2.934 0.371  2.101  2.944  3.762 17.482
   shape[1] 5.105  1.01   2.76  5.128  7.097   8.91
   shape[2] 2.621 1.234  1.311   2.41  6.855 11.842
   scale[1] 0.292 0.217  0.165  0.234  1.143 19.113
   scale[2] 2.191 1.139  0.151  1.988  4.898 19.684

Summary of Key Functions

Phase	Function	Input	Output
1. Fit (bulk only)	`dpmix()`	y, X (optional), kernel, backend, components, mcmc	`mixgpd_fit`
2. Fit (bulk + tail)	`dpmgpd()`	y, X (optional), kernel, backend, components, mcmc	`mixgpd_fit`

Common Parameter Settings

Code

recommended_mcmc <- data.frame(
  profile = c("Quick test", "Standard", "Production"),
  niter = c(500, 1000, 1000),
  nburnin = c(100, 250, 250),
  nchains = c(1, 2, 3)
)

recommended_mcmc

     profile niter nburnin nchains
1 Quick test   500     100       1
2   Standard  1000     250       2
3 Production  1000     250       3

Next Steps

Move to ex01-ex02 for unconditional models (CRP vs SB backends)
Move to ex03-ex04 for tail modeling with GPD
Move to ex05-ex08 for conditional models with covariates
Move to ex09-ex14 for causal inference workflows

Prereqs

Required packages and data for this page are listed in the setup chunks above.

Outputs

This page renders model fits, diagnostics, and summary artifacts generated by package APIs.

Interpretation

Canonical concept page: Start Here
Treat this page as an application/example view and use the canonical page for core definitions.

Continue to the linked canonical concept page, then return for implementation-specific details.
